This ‘little one’ has it all!

The Sparx 12 is equally impressive as an effects unit with single pixel control and TwinZoom for backlighting applications or as an excellent wash light with perfectly homogeneous beams over the entire zoom range of 2,2° – 60°.

The 19 by 40 W of the light 15.5 kg Sparx 12 makes conventional 2 kW spotlights look pale in comparison for color applications. It also guarantees perfectly homogeneous illumination with a level of intensity, brilliance and speed that's sure to be fun and entertaining.

Technical Data

Optics and light source

19 RGBW high-performance LEDs of 40 W each
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
TwinZoom system: Zoom range 2.2°–60° (1:27.3)
Highly efficient optics for perfect color mixing

Effects

Individual LED control – Single pixel control
Sparkle channel for dynamic effects
Multiple layers with independent patterns can be stacked on top of each other
Countless color and pattern combinations
Separate CTC channel
Optimised color mixing behaviour
High-resolution, steplessly variable dimmer 0–100%
Color-accurate dimming
Electronic strobe with pulse and random effects
TwinZoom effects: Multicolor beams and innovative beam shapes
Basic color temperature can be selected: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K

Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 330° tilt

Control and programming

USITT DMX-512, RDM
Ethernet interface with Art-Net, sACN and Kling-Net
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
Color touch display with function keys and battery backup
Mini USB for software update
Stand-alone mode, master/slave function
Built-in DMX analyser

Construction

Robust, roadworthy design
Individually changeable LEDs
Fan control for almost noiseless operation, 29 dB(A)
Graphical display, electronically revolvable

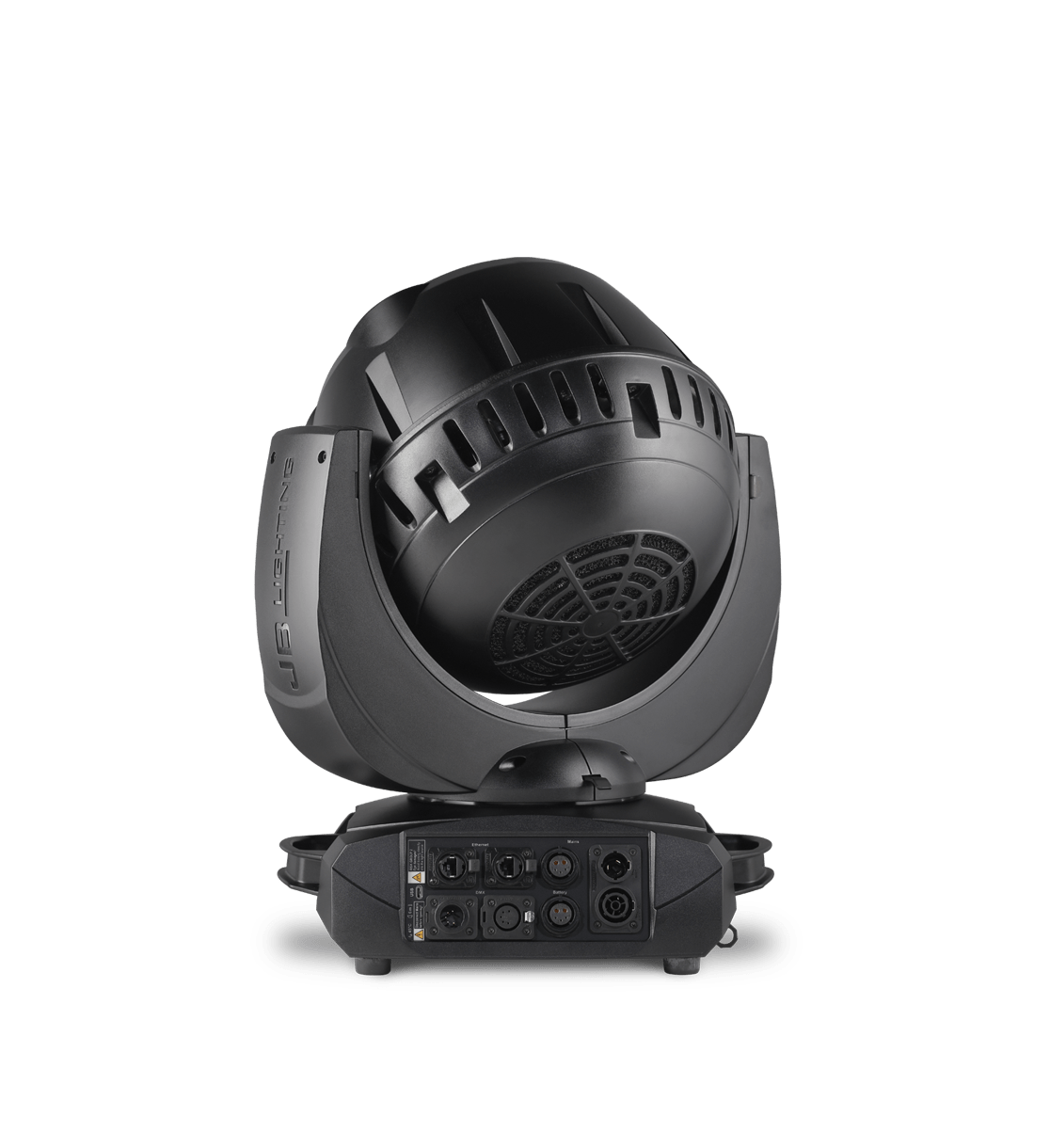

Neutrik 5pin XLR IN/OUT
RJ45 IN/OUT network socket
Power IN/OUT
5pin IN/OUT socket (prepared for battery operation)

Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options

Electrical specification

Max. power consumption 750 VA
Input voltage range 100 V–240 V, 50/60 Hz

Mechanical specification

Dimensions: B 404 x D 265 x H 491 mm
Weight: 15,5 kg

Scope of delivery

Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets

TwinZoom effect

The Sparx 12 is not only head of the class as a motion artist, its luminosity and zoom range are also quite remarkable. It switches from very narrow to wide beam distribution just as fast as its head movements. The TwinZoom can be used to zoom the outer LED ring and the inner 7 LEDs separately and with different colors, greatly increasing the number of beam shapes and effects.

ADJUSTABLE BASIC COLOR TEMPERATURE

The basic colour temperature, which is used to mix all colours automatically, is freely selectable on the Sparx 12, making it an excellent addition to any lighting ensemble.

2700 K

3200 K

4200 K

5600 K

6000 K

6500 K

7000 K

8000 K

STEPLESS ZOOM: 2.2° - 60° (1:27.3)

The luminosity of the Sparx 12 is absolutely stunning throughout the zoom range. It also changes from very narrow to wide beam distribution extremely quickly and with hardly a sound.

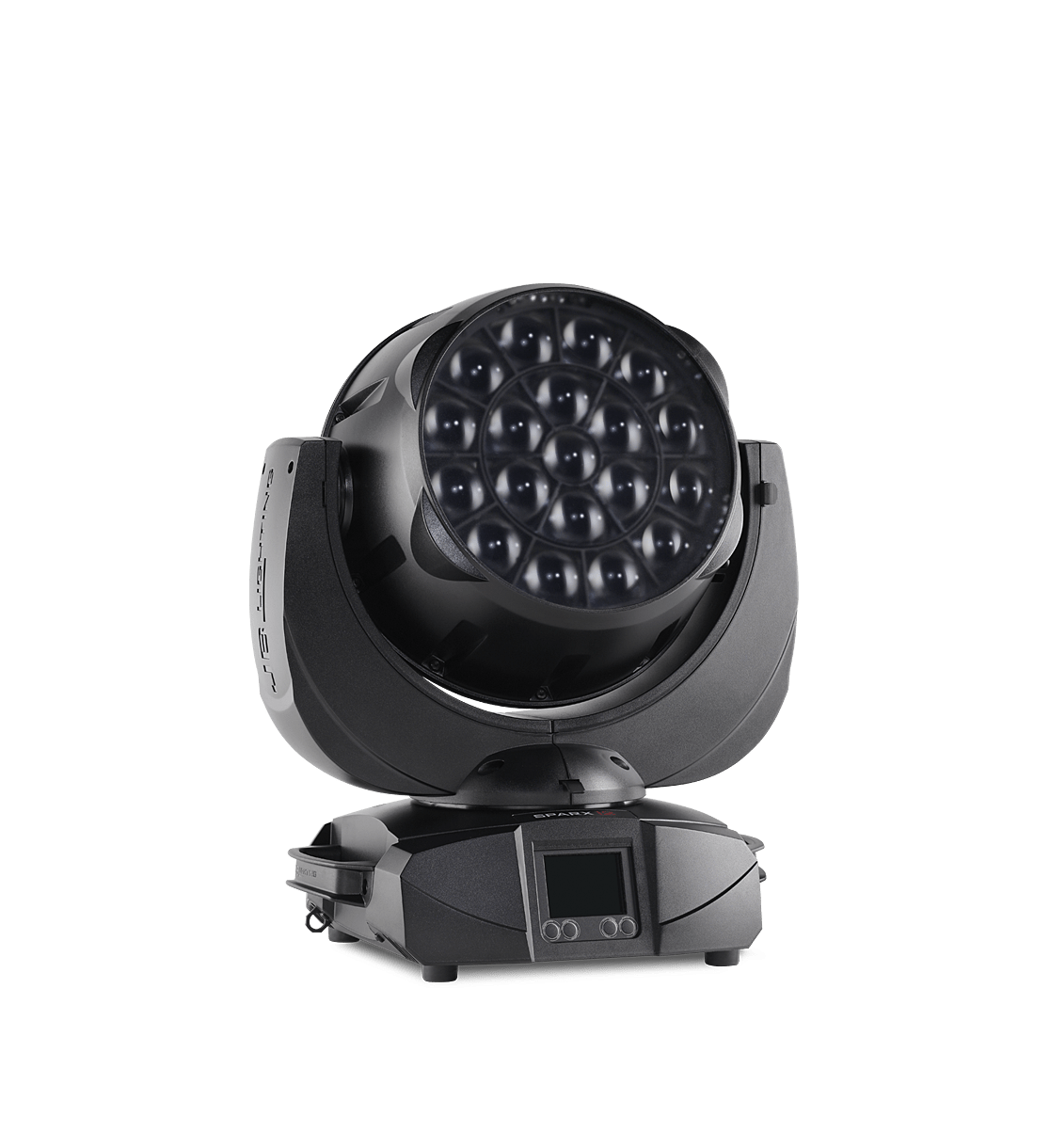

Minimum zoom

Maximum zoom

HARD EDGE & SOFT EDGE

Thanks to the scattered light-optimised beam and with the help of the TwinZoom, enormously homogeneous light projections ranging from hard edge to soft edge are able to be created.

Hard Edge

Soft Edge

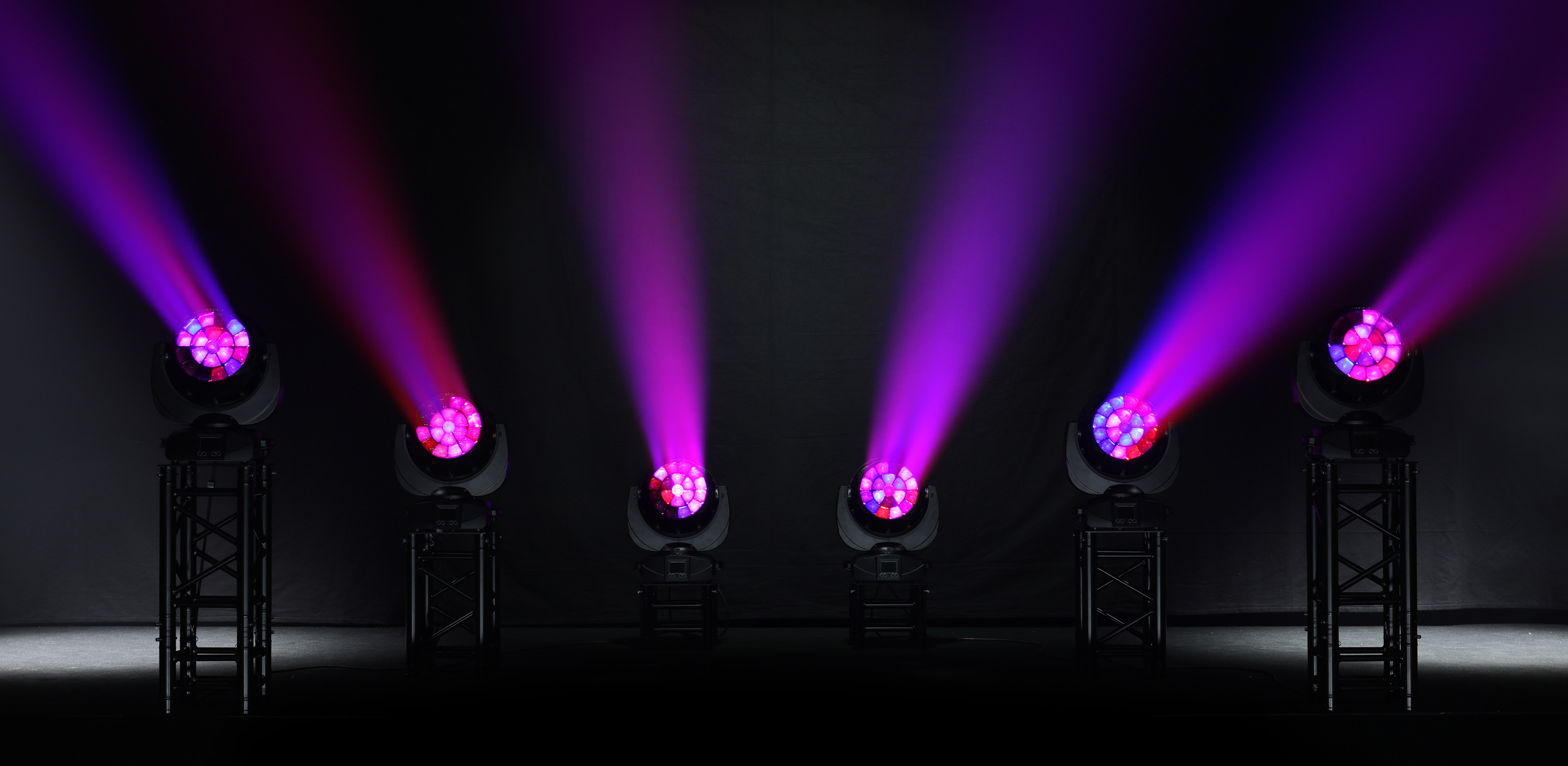

MULTICOLOUR BEAMS & BEAM SHAPES

With its brightness, variety of colors and patterns, as well as perfect dimming properties, the Sparx 12 sets accents on every stage and ensures optimal lighting, whether in the theatre, at trade fairs, events or on TV. It takes up very little space and fits into any rig. Thanks to the TwinZoom and sparkle effects, single-pixel control and CTC channel, its performance is impressive even with backlighting.

You must activate our “external media“ cookie guideline to call up videos directly on our website."

OPTIONAL: BEAMSHAPE

Beamshape transforms a circular beam into an oval one. This is necessary, for example, if rectangular, asymmetrical objects need to be illuminated or a pixel washer is needed to create aisle lighting in the theatre.

JB USER NETWORK

You want to rent JB moving heads and want to know who is renting the right ones? No problem! Our User Network provides you with the answer.

That works!

Real bespoke work – the perfect accessory for the Sparx 12 „Made in Germany“

Beamshape (Code ZU0027)

Produces oval, asymmetrical beams for illuminating rectangular objects at trade fairs or as aisle lighting in the theatre
Infinitely rotatable and positionable
Weight: 350 g
