A top class entertainer

The P9 HP rocks, is versatile to use and enjoys band life on tour just as much as TV appearances or any other type of event. The “Small version” with 330 Watt LED engine (6800 K, 15,000 lm) and a weight of only 17 kg is not only a big player in terms of luminosity and handling.

Despite its compact dimensions, the P9 has a full range of effects in its tour case, including 2 gobo wheels, a color wheel with 7 color filters and 2 correction filters, linear CTO, CMY color mixing, prism, frost, etc. A full range of effects equipment in the tour case that is well worth seeing.

Technical Data:

  • 330 W white light LED module
    HP (High Power): 6800 K; 25,000 lm (15,000 lm Output); CRI > 70
  • Zoom range: 3.4° – 54° (1: 15.9)
  • Large light-emitting lens: Ø 135 mm
  • > 20,000 h life time
  • Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
  • 1 gobo wheel with 11 static gobos + open

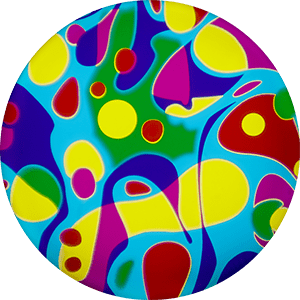

  • 1 gobo wheel with 7 rotatable, positionable and interchangeable gobos incl. multicolour gobo + open
  • 1 color wheel with 7 full or half colors + linear CTO + open
  • CTB filter (8500 K) for automatic colour correction with gobo application
  • High CRI filter: 5800 K, CRI >90
  • CMY color mixing unit for rapid, even color mixing
  • Infinitely adjustable frost filter, 5°, exchangeable - further frost levels optionally available
  • 3-section prism circular, rotatable and indexable
  • Motorised, infinitely adjustable high-speed iris
  • Electronic dimmer 0% – 100%
  • Electronic shutter with pre-programmed pulse and ramp functions
  • Sparkle effect
  • Focus with auto-focus function
  • 3 phase extra strong stepping motors
  • Precise, very fast and silent movement
  • 540° pan / 280° tilt
  • USITT DMX-512, RDM
  • Ethernet / Artnet - sACN
  • Wireless DMX / RDM Lumen Radio CRMX TiMo
  • Mini USB for software update
  • Stand-alone mode
  • Master/slave function
  • Built-in DMX analyser
  • Original JB-Lighting slide-in module technology
  • Robust, roadworthy design with 4 carrying handles
  • Pan/Tilt transport lock
  • Fan control for almost noiseless operation, 29 dB(A)
  • LCD display with function keys and battery buffer, electronically rotatable
  • Neutrik 5pin IN/OUT
  • Neutrik etherCON IN/OUT
  • Neutrik powerCON TRUE1 IN/OUT
  • 2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
  • Maximum power consumption 460 VA
  • Input voltage range 100 V-240 V, 50/60 Hz
  • Dimensions: W 398 x H 609 x D 264 mm
  • Weight: 17 kg
  • Schuko to powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
  • 2 Omega brackets

Brilliant Colors

The P9 is equipped with 7 color filters, 2 correction filters and a variable CTO filter. Of course, a CMY color mixing unit is also built into the P9, which expands the color spectrum many times over


The P9 HP (High Power) can be used in three light colors!

6800 K, 15,000 lm output
Basic color of the P9
5800 K, 10,000 lm output
with High CRI filter
3200 K, 7,000 lm output
with CTO filter


The color wheel of the P9 is equipped, among other things, with a CTB filter (8500 K) that automatically retracts with gobo applications and corrects the color shift of the gobo without loss of brightness. The optical system of the P9 uses the reflective light inside the housing to automatically compensate for brightness. In addition, the P9 is equipped with a High CRI filter, achieving a color temperature of 5800 K and a CRI >90, making it ideally suited for front lighting applications.


In addition to its enormous luminosity (15,000 lm), the P9 has a zoom of 3.4 – 54° (1:15.9), covering the entire range of spot and beam applications.
Minimal zoom (3.4°)
Maximum zoom (54°)


With the aid of the infinitely adjustable frost filter, the beam edges and gobos of the P9 can be blurred in a controlled manner throughout the entire zoom range.
Beam without frost
... with frost filter


The gobos of the P9 can be combined with the 3-section prism (circular). The prism is indexable and can be rotated infinitely at different speeds, which creates impressive moving images.


Servicing, cleaning and changing gobos can all take place quickly and conveniently with the P9, because all inserts can be removed without tools or manual cable separation.
Removal of gobo unit
Removal of color unit


With two gobo wheels equipped with 7 rotating, positioning and interchangeable gobos + 9 static gobos + 2 reduction gobos (4 and 6 mm), the P9 is optimally equipped for beam and spot applications.



Gobo size Gobowheel 1

Gobo size Gobowheel 2

That works!

Real bespoke work – the perfect accessory for the P9 Spot „Made in Germany“


  • Pro case made from 7 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: W 60 x D 60 x H 82 cm
  • Weight (incl. devices): approx. 40 (74) kg


  • Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: W 117 x D 60 x H 82 cm
  • Weight (incl. devices): approx. 70 (138) kg
