Fascinating through and through

The P12 Spot is a high quality atmospheric tool. With an animation module and a complete set of effects, it transforms any event into a real spectacle. With its 640 Watt LED power, it is not only incredibly bright, but also extremely light and compact at only 23 kg.

The extremely quiet P12 Spot is at home in the brightness class of comparable moving lights with 1,200 Watts and masters every task with flying colours - and that with a power consumption of just 800 Watts.

Technical data

Optics and light source
  • 640 W white light LED module
    HP (High Power): 6800 K; 46,000 lm (25,000 lm Output); CRI ≥70
    HC (High CRI): 5800 K; 34,000 lm (19,000 lm Output); CRI ≥90
    WW (Warm White): 3200 K; 27,000 lm (15,000 lm Output); CRI ≥91
  • > 20,000 h life time
  • Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
  • Zoom range: 5.7° – 60° (1:10.5)
  • 2 gobo wheels, each with 6 rotate-, position- and interchangeable gobos + open
  • CMY color mixing unit for rapid, even color mixing + linear CTO (P12 HP and P12 HC) and linear CTB (P12 WW) respectively
  • P12 HP: 1 color wheel with 7 full and half colors + open and linear color selection + High CRI filter
  • P12 HC and WW: 1 color wheel with 7 full and half colors + open and linear color selection + CTB filter
  • 2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
  • 2 prisms, linear and circular, rotate- and indexable
  • Motorised infinitely adjustable high-speed iris
  • Electronic dimmer 0 % – 100 %
  • Electronic shutter with preprogrammed puls- and ramp functions
  • Animation effect / Sparkle effect
  • Focus system with auto focus function
  • Animation module with endlessly rotating animation wheel
  • 3 phase extra strong stepping motors
  • Precise, very fast and silent movement
  • 540° pan / 280° tilt
Control and programming
  • USITT DMX-512, RDM
  • Ethernet / Artnet - sACN
  • Wireless DMX / RDM Lumen Radio CRMX TiMo
  • Bluetooth, Wifi
  • LCD-display with function keys and batterie backup
  • Mini USB for software update
  • Stand-alone mode
  • Master/slave function
  • Built-in DMX analyser
  • Original JB-Lighting slide-in module technology
  • Rugged construction
  • Transport lock for pan/tilt
  • Forced air cooling (temperature regulated, low noise)
  • Graphical display, electronically revolvable
  • 2 Neutrik etherCON Connectors
  • Neutrik 5pin IN/OUT
  • Neutrik powerCON TRUE1 IN/OUT
  • 2 Omega brackets for quick and convenient installation
Electrical specification
  • Max. power consumption 800 VA
  • Input voltage range 100 V – 240 V, 50/60 Hz
Mechanical specification
  • Dimensions: W 421 x H 682 x D 264 mm
  • Weight: 23 kg
Scope of delivery
  • Schuko on powerCON TRUE1,
    flexible rubber cable (2 m long, 3 x 1.5 mm²)
  • 2 Omega brackets


P12 Spot
HP – High Power
6800 K
46,000 lm (25,000 lm Output)
≥70 (with CRI filter ≥85)
linear CTO
6800 K to 3200 K
Maximum luminous intensity
for optimal illumination
even from a great distance
P12 Spot
HC – High CRI
5800 K
34,000 lm (19,000 lm Output)
linear CTO
5800 K to 2700 K
Maximum light quality
for optimal color reproduction
with the best luminosity
P12 Spot
WW – Warm White
3200 K
27,000 lm (15,000 lm Output)
linear CTB
3200 K to 5000 K
Maximum comparability
with conventional
halogen lamps

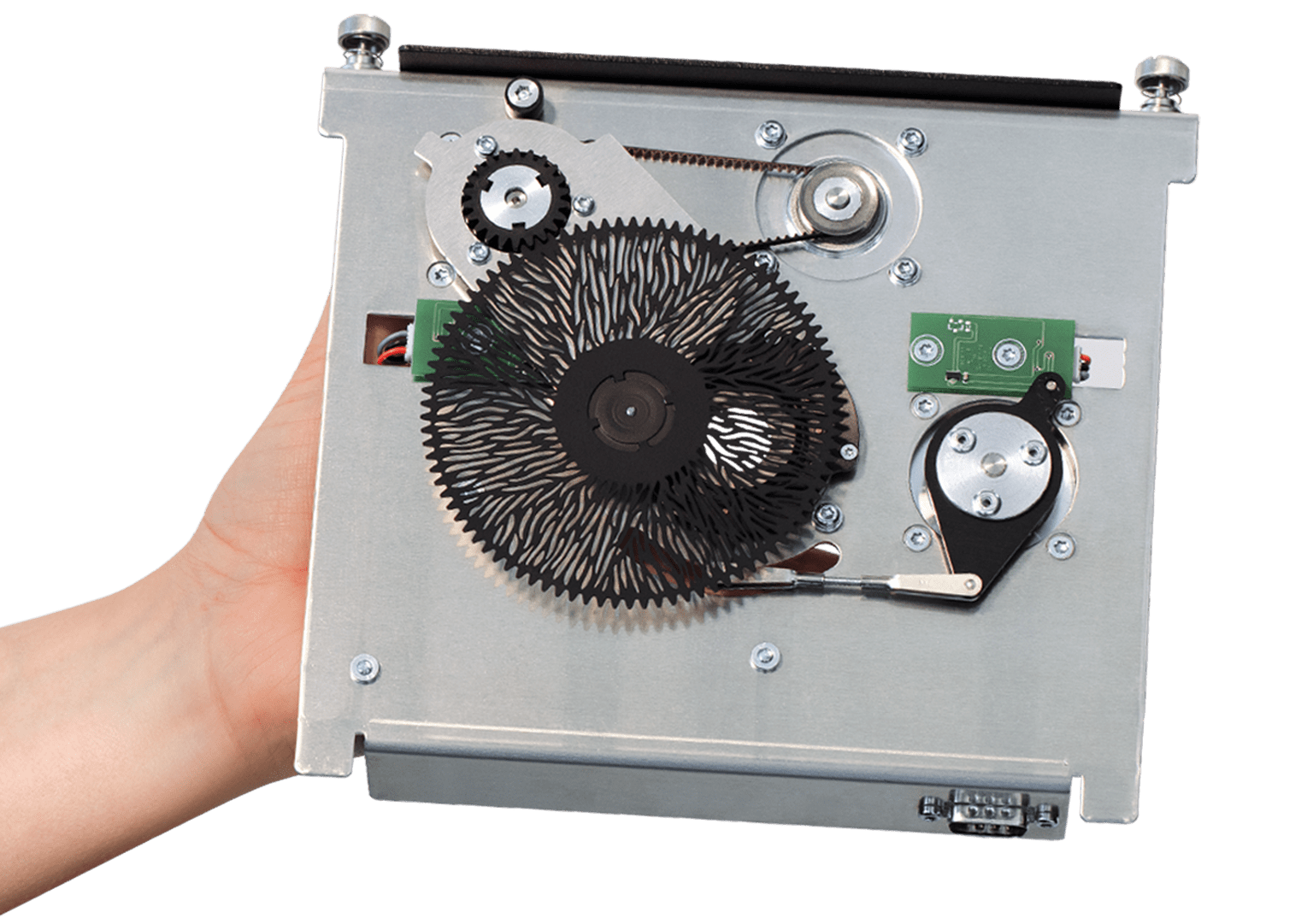

Animation Module

The P12 Spot is also equipped with a fully-fledged, endlessly rotating animation wheel. This will give fans of realistic fire and water effects their money‘s worth. With the P12 Spot, the versatile all-rounder from JB, lighting, design becomes an endless pleasure.


The effects unit of the P12 Profile HP is equipped with 7 brilliant full colors and a High-CRI filter, which is replaced by a CTB color filter in the P12 Profile HC and WW. In addition, the color wheel can be seamlessly rotated at different speeds, creating great color effects and half colors.


The CMY color mixing unit of the P12 expands the color spectrum to an almost unlimited number of colors and enables absolutely harmonious color progressions or transitions.


Alongside its excellent lighting power, the P12 Spot also has a zoom range of 5,7 – 60° (1:10,5) and two frost filters. This makes it ideally suited to washlight applications too.
Minimum zoom
Maximum zoom


Two seamlessly adjustable frost filters make the P12 a universal all-rounder for a great variety of different stage applications.
Without frost effect
Soft edge
Flood frost


Gobos can be combined with two (indexable) prisms, 3-section circular or 5-section linear. In rotation these provide impressive images and dramatic 3D elements.
3-section prism (circular)
5-section prism (linear)


Cleaning and gobo changing are child's play with the P12. All plug-ins can be removed without tools or manual cable disconnection.
Removing gobo / color plug-in
Removing shutter-blade module


With two gobo wheels, each with 6 interchangeable gobos and rotatable, positionable and interchangeable gobos, the P12 is ideally equipped for projection and morphing applications. Here you can provide the timing – whether rotations in high-speed, absolute time loops or perfectly in time with the music.



Gobo size Gobowheel 1

Gobo size Gobowheel 2

That works!

Real bespoke work – the perfect accessory for the P12 Spot
„Made in Germany“


  • Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: L 60 x B 60 x H 90 cm
  • Weight (incl. devices): ca. 48 (94) kg


  • Pro case made from 10 mm birch plywood with SiP insert, stacking troughs and a scan window
  • Original amptown cases Blue Wheels
  • Dimensions: L 120 x B 60 x H 90 cm
  • Weight (incl. devices): ca. 76 (168) kg


(Code JBK0322)
  • To further reduce light scatter
  • Easy Installation of the lens hood using the 4 mounting screws provided
  • Dimensions: (without clips): Ø 175 x 44 mm
  • Weight (without screws): 86 g
